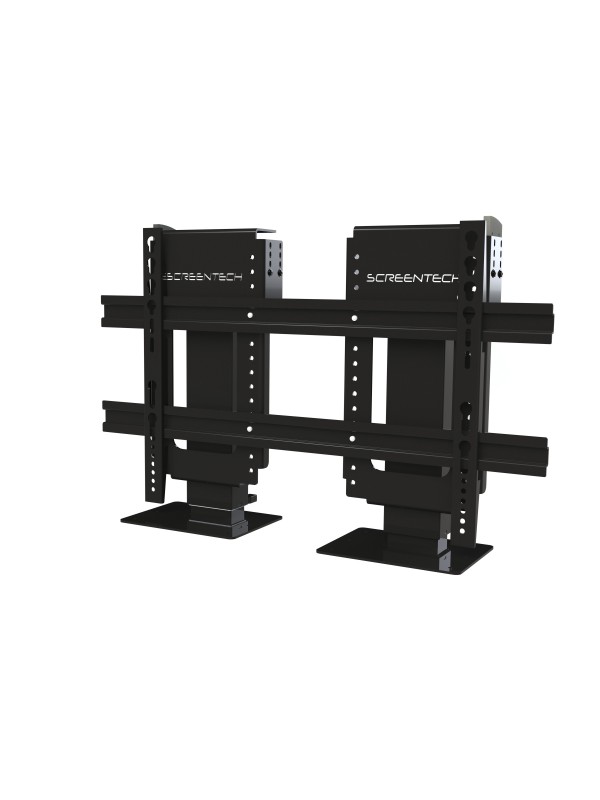

ST660 TWIN SCREENTECH TV LIFT WITH BT (BLUETOOTH)
ST660 TWIN BT
This double version of the ST660/999 is used for extra wide or heavy screens or when extra stability is required, for example on ships.
Specifications Deluxe ST660 TWIN BT
| Lift size | 545 x 850 x 178 mm |
| Mounting depth | 90 mm |
| Mounting height | 545 / 565 mm excl./ incl. lid-lifter |
| Stroke length | 660 mm. Maximum stroke to limit electrical. |
| Height adjustment | 454 - 1205 mm |
| Screen height | Max. 660mm |
| VESA | 600 x 400, 800 x 400 |
| Lift capacity | 100 kg |

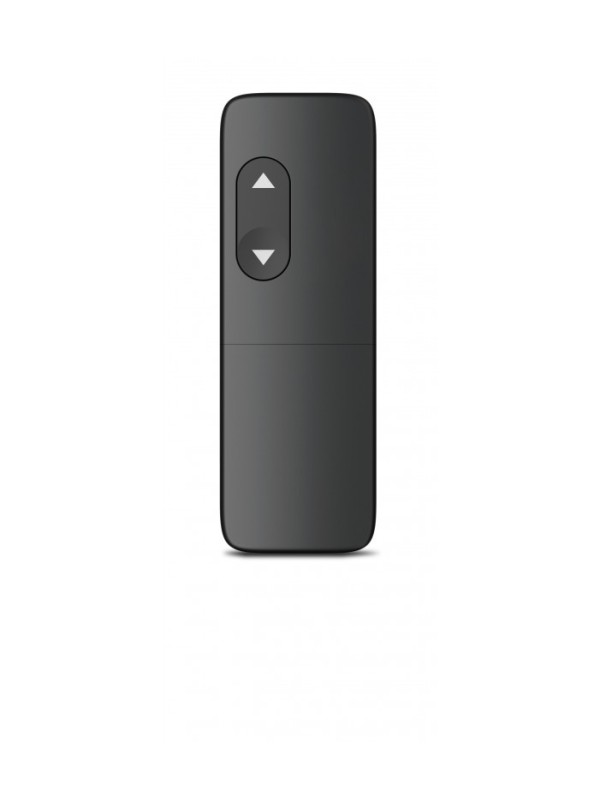

| Remote control | Bluetooth |
| Mounting | (Cabinet) floor |
| Direction | Standard |
| Rotatable | No |
| Safety function | Yes |
| Guarantee | 2 years manufacturer's warranty on material and production errors |
| Delivery includes | Bracketset, BT remote control, trafo en manual switch |
| Options | Extra lidlifter, Bracketset ST1000 |
ST660 TWIN BT
Data sheet
- HEIGHT OF TELEVISION (EXCL FEET) (CM)
- 0 - 60
- HEIGHT ADJUSTMENT (MM)
- 600
- VESA (MM)
- 800x400
- VESA (MM)
- 600x400
- MINIMUM BUILD-IN HEIGHT (MM)
- 529
- SAFETY FUNCTION
- Ja, beide richtingen
Specific References
This double version of the ST660/999 is used for extra wide or heavy screens or when extra stability is required, for example on ships.
