ST1000C VENSET TV LIFT TWIN
ST1000C TWIN

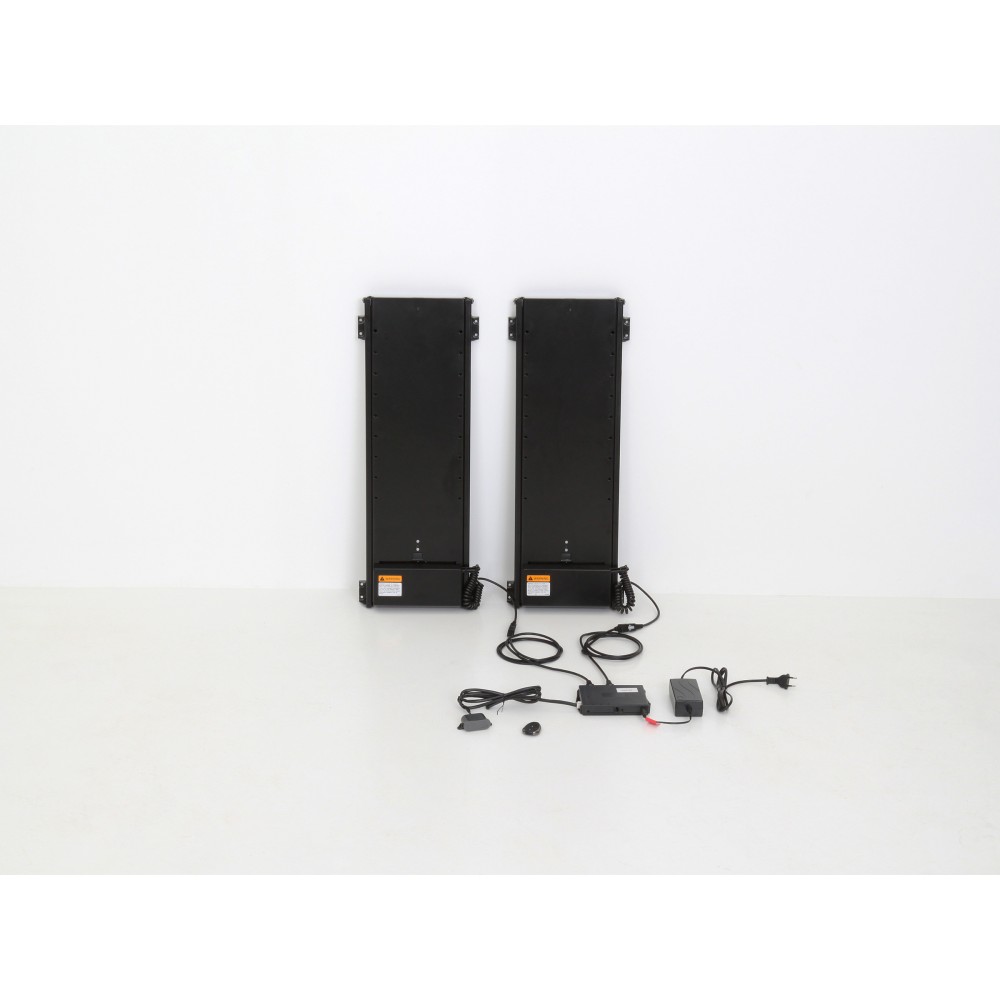

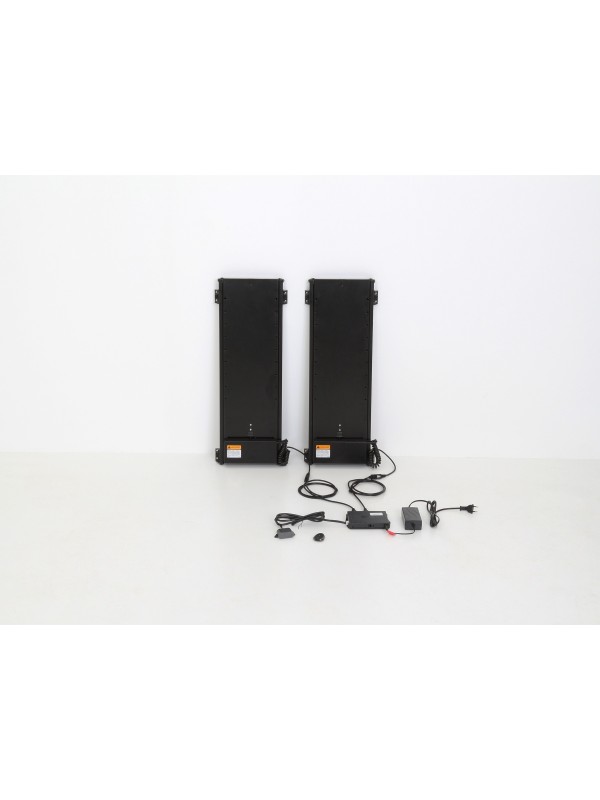

The TS1000 TWIN is a Plug & Play powder coated steel flat lift with electronic adjustment of min. and max height. This type, consisting of two synchronously controlled basic lifts, is used when extra stability is required when used with heavy or large screens.

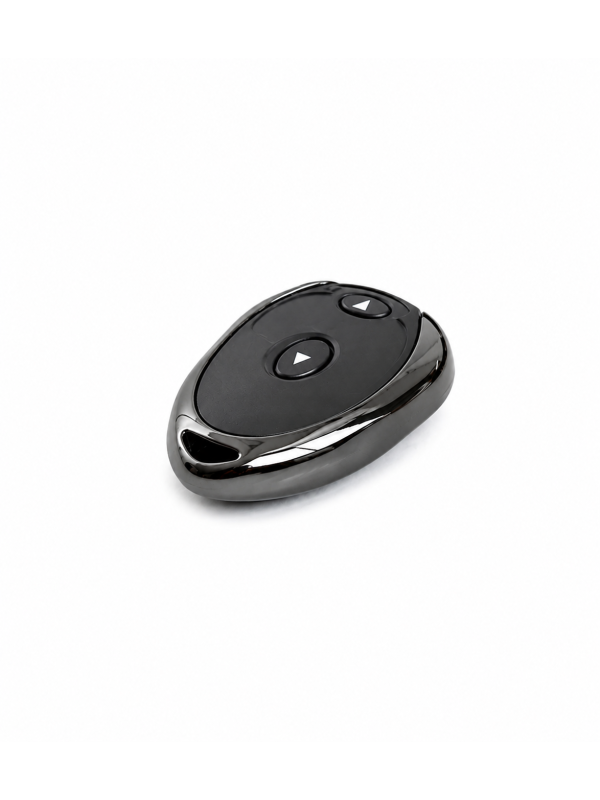

The lift combination can also be used in reverse and is supplied without remote control as standard. An RF or IR remote control can be ordered as desired.
Specifications VenSet ST1000C TWIN
| Lift size | 750 x 286 x 72 mm |
| Mounting depth | 50 / 70 mm excl. / incl. brackets |
| Mounting height | 750 / 796 - 1036 mm excl./ incl. lid-lifter |
| Stroke length | max. 1000 mm, to limit mechanical |
| Height adjustment | 750 – 1750 mm |
| Screen height | max. 1000 mm |
| VESA | 200 x 100, 200 x 200, 300 x 300, 400 x 100, 400 x 200, 400 x 300, 400 x 400, 600 x 100, 600 x 200, 600 x 400 |
| Lift capacity | 100 kg |
| Remote control | RF, IR optional |
| Mounting | (cabinet) Wall, with FM1000 on the floor, ceiling |
| Running direction | standard and upside down |
| Rotatable | No |
| Security | Yes |
| Guarantee | 2 years manufacturer's warranty on material and production errors |
| Delivery includes | Bracketset ST1000, RF remote control, trafo en manual switch |
| Options | Manual tilt bracket SB001, Bracketset ST1000, IR remote control, Bracket FM1000 |
ST1000C TWIN
Data sheet
- HEIGHT ADJUSTMENT (MM)
- 1000
- VESA (MM)
- 100x100
- VESA (MM)
- 200x100
- VESA (MM)
- 300x300
- VESA (MM)
- 400x100
- VESA (MM)
- 400x200
- VESA (MM)
- 400x300
- VESA (MM)
- 400x400
- VESA (MM)
- 600x100
- VESA (MM)
- 600x200
- VESA (MM)
- 600x400
- MINIMUM BUILD-IN HEIGHT (MM)
- 800
- SAFETY FUNCTION
- Ja, beide richtingen
